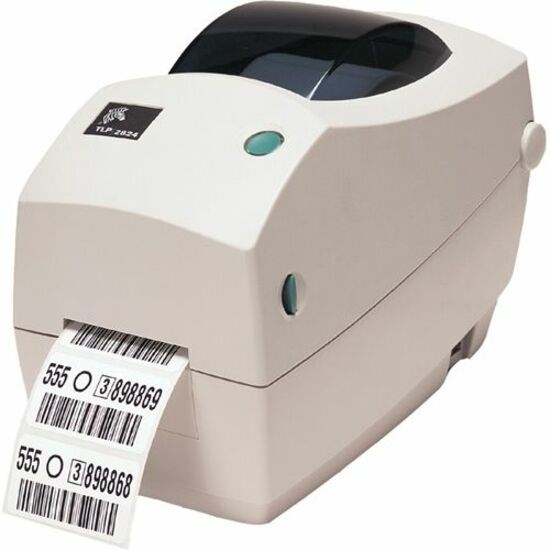

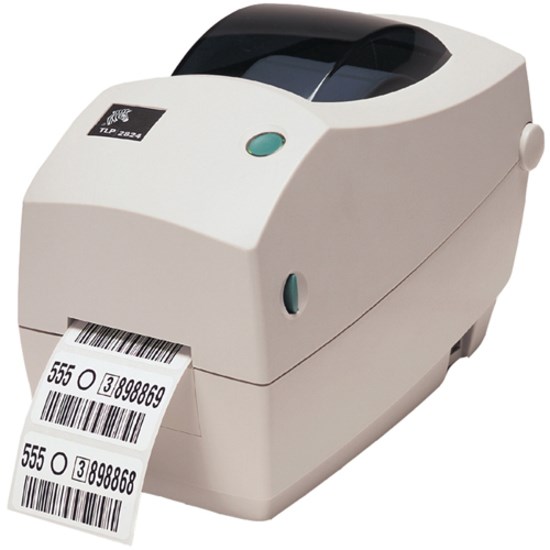

The ultra-compact TLP 2824 Plus bar code label printer, for print widths up to 2.2 inches/56 mm, brings powerful performance to applications requiring both direct thermal and thermal transfer printing. It includes a 32-bit RISC processor for faster formatting and first label out, an auto-sensing serial port, and co-resident EPL and ZPL programming languages. Available options include additional memory, 10/100 Ethernet, label peeler, and receipt/label cutter.
- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com
- Brand Name
- Zebra
- Product Series
- TLP 2800
- Product Type
- Thermal Transfer Printer
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 4 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 2.20"
- Barcode Symbology Supported
- Code 11
- Code 39
- Code 128
- UPC-E
- EAN-13
- EAN-8
- EAN-14
- UPC-A with 2 or 5 Digit Extension
- UPC-E with 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- Plessey
- POSTNET
- Standard 2 of 5
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Codabar
- GS1 DataBar
- RSS
- PDF-417
- Micro PDF-417
- Code 49
- Maxi Code
- Codablock
- Data Matrix
- QR Code
- Aztec Code
- Code 128-A
- Code 128-B
- Code 128-C
- UCC/EAN 128
- Code 93
- German Post Code
- Application/Usage
- Desktop
- Features
- Dispenser
- Tear-off
- Print Technology
- Thermal Transfer
- Memory
- Standard Memory
- 8 MB
- Memory Technology
- SDRAM
- Flash Memory
- 4 MB
- Interfaces/Ports
- Parallel Port
- Yes
- Serial Port
- Yes
- Media Types & Handling
- Media Type
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Black Mark
- Tag Stock
- Continuous Receipt
- Wristband
- Media Sensor
- Cover Open Sensor
- Media Thickness
- 7 mil
- Maximum Roll Diameter
- 5"
- Maximum Label Width
- 2.36"
- Maximum Label Length
- 39"
- Ribbon Core Size
- 1.50"
- Fonts & Emulation
- Language Emulation
- EPL
- ZPL
- Power Description
- Power Source
- AC Supply
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- Height
- 7"
- Width
- 4.4"
- Depth
- 8.5"
- Weight (Approximate)
- 3.53 lb
- Miscellaneous
- Package Contents
- TLP 2824 Plus Label Printer
- USA Power Cord
- Cables Included
- AC
- Platform Supported
- PC
- Certifications & Standards
- FCC Part 15
- Subpart B
- VCCI
- C-Tick
- EN55022
- Class-B
- EN61000-3-2
- EN61000-3-3
- EN55024
- CB Scheme IEC 60950:1991 +A1 +A2 +A3 +A3 +A4
- UL 60950
- C-UL
- IRAM NOM
- AAMI
