- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com
- Brand Name
- Zebra
- Product Type
- Thermal Transfer Printer

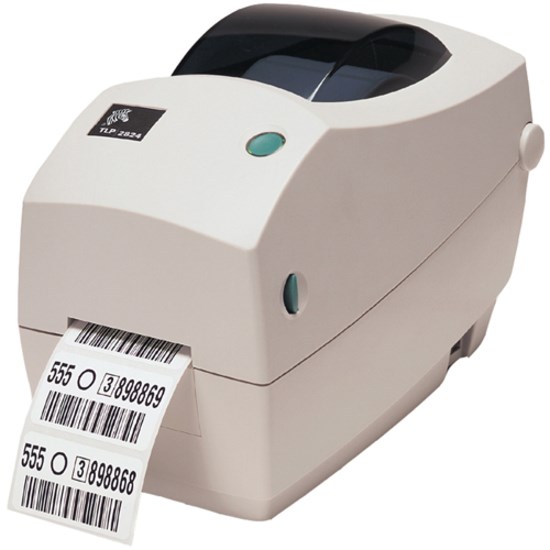

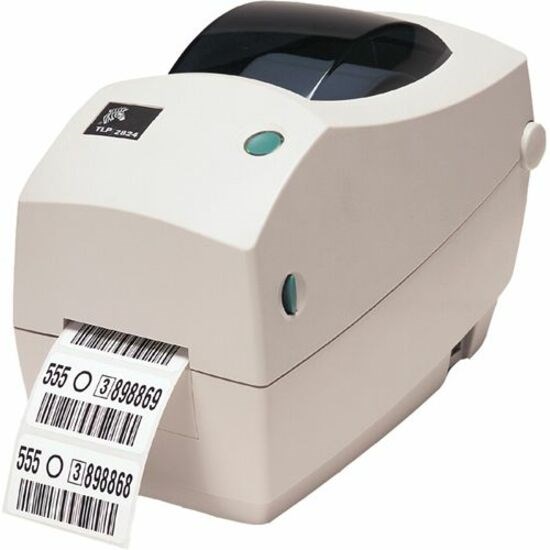

The ultra compact thermal TLP 2824 Plus bar code label printer brings powerful performance to applications requiring a space saving printer and lesser media widths. It includes a processor for faster formatting and first label out, an auto sensing port and multiple programming languages.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 4 in/s
- Maximum Print Resolution (dpi)
- 203
- Maximum Print Width
- 2.20"
- Barcode Symbology Supported
- GS1 DataBar
- Aztec Code
- Code 11
- Code 128
- Code 39
- Code 93
- EAN-13
- EAN-8
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Plessey
- POSTNET
- RSS-14
- Standard 2 of 5
- UPC-A
- UPC-A with 2 or 5 Digit Extension
- UPC-E with 2 or 5 Digit Extension
- UPC-E
- Code 128-A
- Code 128-B
- Code 128-C
- UCC/EAN 128
- MSI-3
- German Post Code
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- Micro PDF-417
- PDF-417
- QR Code
- RSS
- Application/Usage
- Desktop
- Features
- Tear-off
- Print Technology
- Thermal Transfer
- Memory
- Standard Memory
- 8 MB
- Memory Technology
- SDRAM
- Flash Memory
- 4 MB
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- Media Types & Handling
- Media Type
- Black Bar
- Black Mark
- Continuous Form
- Continuous Receipt
- Die-cut Label
- Gap
- Fanfold
- Linerless
- Notch
- Notched
- Perforated Paper
- Receipt
- Roll Fed
- Tag
- Tag Stock
- Media Sensor
- Cover Open Sensor
- Transmissive Media Sensor
- Reflective Media Sensor
- Media Thickness
- 7 mil
- Maximum Roll Diameter
- 5"
- Maximum Label Width
- 2.36"
- Maximum Label Length
- 39"
- Ribbon Core Size
- 0.50"
- Fonts & Emulation
- Language Emulation
- EPL
- ZPL
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- Height
- 7"
- Width
- 5.3"
- Depth
- 9.5"
- Miscellaneous
- Additional Information
- Reset feature button
- 32 bit RISC processor
- Auto calibration of media
- Certified Microsoft Windows drivers
- Odometer for printer length tracking
- Construction: ABS double-walled casing
- OpenACCESS design for easy media loading
- Unicode compliant for multi-language printing
- Platform Supported
- PC
- Country of Origin
- China
