- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- PoE+ Extender

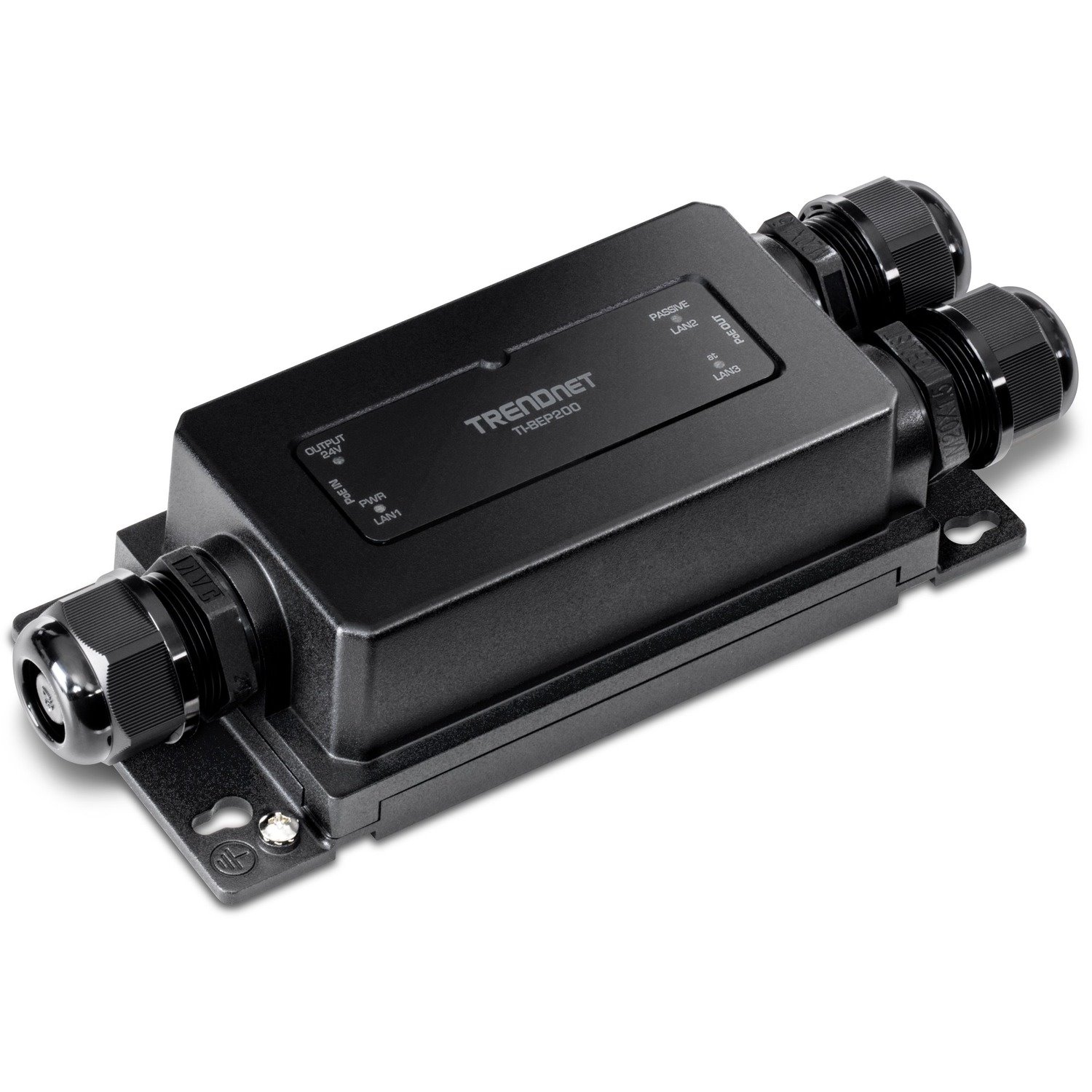

TRENDnet's 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, and one PoE+ and one Passive PoE output ports.
- DEVICE INTERFACE: 1 x Gigabit PoE++ in port; 1 x Gigabit PoE+ out port; 1 x Gigabit 24/48V DC Passive PoE out port; LED Indicators; Wall mount
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant PoE+ Extender, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-BEP200 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender is backed and supported with 3 years of TRENDnet Manufacturer Protection.
- EXTENSION DISTANCE: Take a single PoE++ (90W)connection and extend it an additional 100 meters (328 ft.) toPoE (15.4W), PoE+ (30W), and PoE++ (60W) devices for atotal distance up to 200m (656 ft.)
- DAISY CHAIN: Daisy chain up to 4 gigabit PoE extenders fora total PoE network extension of up to 500m (1640 ft.)
- POE POWERED: The extender does not require externalpower which saves installation time and costs
- OUTDOOR RATED: Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°- 75° C (-40° - 167° F).
- PoE POWERED: No external power required-saves installation time and cost
- GIGABIT PORTS: Features one gigabit PoE++ input port and two gigabit PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Protection Type
- Surge Protection
- Power Description
- Minimum Output Voltage
- -24 V DC
- Maximum Output Voltage
- 48 V DC
- Maximum Output Power
- 30 W
- Interfaces/Ports
- Input Ports
- 1 x Gigabit PoE++
- Output Ports
- 1 x Gigabit PoE+
- 1 x Gigabit PoE
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 1.7"
- Width
- 6.6"
- Depth
- 2.9"
- Weight (Approximate)
- 9.38 oz
- Miscellaneous
- Package Contents
- 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender
- Quick Installation Guide
- 3 x IP67 Weather Rated Cable Glands
- Wrench
- Wall Mount Screws
- Certifications & Standards
Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Certifications
- CE
- FCC
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 60068-2-27 (Shock)
- IEC 60068-2-32 (Free Fall)
- IEC 60068-2-6 (Vibration)
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
