- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- C2G
- Product Series
- SWM
- Product Type
- Rack Cabinet

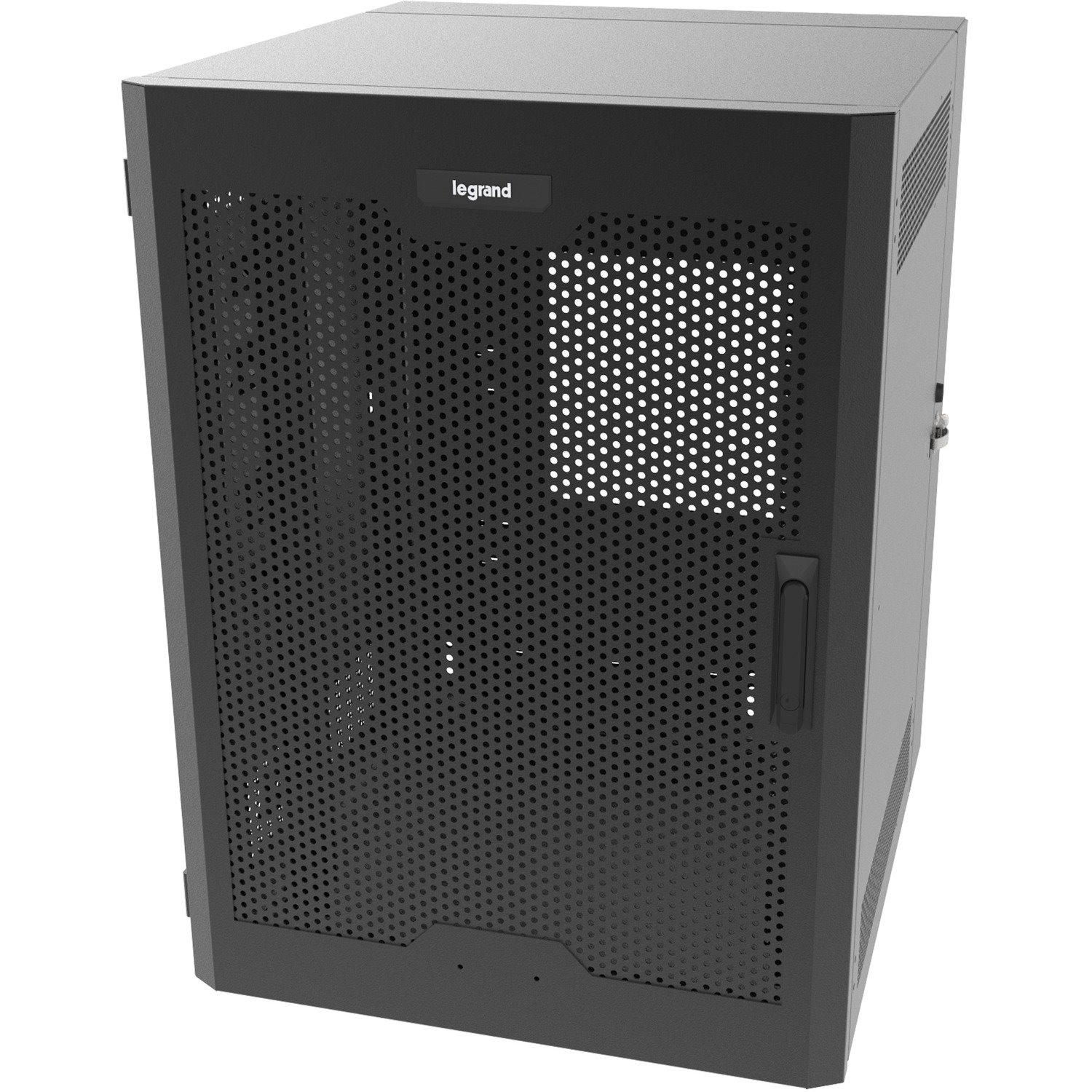

The Legrand SWM Series wall mount cabinets provide a convenient and easy to use solution, perfect for secure networks, small data closets, retail, educational, edge computing, and all areas where floor space is limited.
The SWM Series wall mount cabinets ship completely assembled which speeds installation time. The hinged, swing out middle section provides easy accessibility to the front and the rear of the equipment while mounted to the wall.
The SWM cabinets are made of rugged welded steel and have a UL 2416 certified load rating of 300 lbs. The small form factor cabinets are PCI compliant, have a 23.5" equipment mounting depth and feature a solid locking door that provides security for the installed equipment.
- Certified load rating of 300 lbs per UL2416
- Full swing handle
- Reversible hinged plexiglass front locking door
- Vented sides with mounting locations for optional cooling fans
- 12-24 threaded mounting holes
- Universal mounting pattern for industry standard PDUs
- Cable knockouts at top and bottom of fixed rear pan
- Large cutout in rear pan for access to wall
- Warranty
- Limited Warranty
- 5 Year
- Physical Characteristics
- Form Factor
- Wall Mountable
- Color Family
- Black
- Product Color
- Black
- Product Material
- Steel
- Static/Stationary Weight Capacity
- 300 lb
- Height
- 49.4"
- Width
- 26"
- Depth
- 28"
- Weight (Approximate)
- 139 lb
- Rack Height
- 26U
- Miscellaneous
- Package Contents
- 26RU Swing-Out Wall-Mount Cabinet with Perforated Door-Black-TAA
- 2 x Front Mounting Rails
- 2 x Front Door Lock Keys
- 8 x Cable Management Rings
- Owner's Manual
- Assembly Required
- No
- Country of Origin
- United States
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
