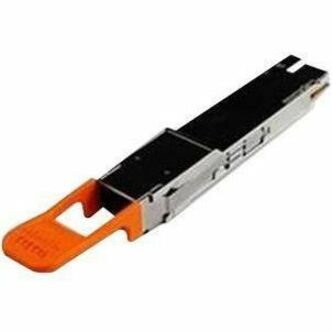

The Cisco® 400G QSFP-400G-DR4 modules offer customers high-bandwidth transceiver modules targeting network interface cards (NICs) and smart NICs used in data centers, high-performance computing networks, and AI applications. This is Cisco's latest generation of 400 Gigabit Ethernet (400G) transceiver modules and cables based on the Quad Small Form-Factor Pluggable (QSFP112) form factor designed to support four electricial lanes at 112Gbps in the QSFP form factor.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Type
- QSFP112
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- MPO-12
- Interfaces/Ports Details
- 1 x MPO-12 400GBASE-DR4 Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1310 nm
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 400 Gigabit Ethernet
- Network Technology
- 400GBase-DR4
- Maximum Distance Supported
- 0.50 km
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 167°F (75°C)
- Physical Characteristics
- Height
- 0.3"
- Width
- 0.7"
- Weight (Approximate)
- 0.22 lb
- Miscellaneous
- Compatibility
MSA Compliant
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 6
- Waste Electrical and Electronic Equipment Directive (WEEE)
