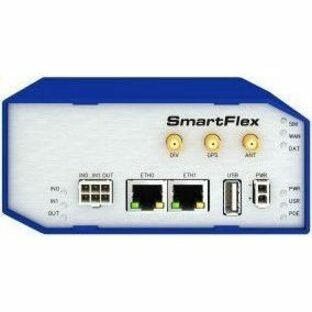

SmartFlexTM cellular router provides secure Internet connectivity for devices and LANs via the cellular networks. It can provide automatic wireless failover for wired networks, wireless connectivity for devices in remote locations where cable connections are impractical and wireless connectivity for mobile assets. With upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, SmartFlex provides ample bandwidth, even for applications that require video.
SmartFlex places intelligence at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LTE (Long Term Evolution) speeds and applications. A secure Web interface allows users to configure and manage SmartFlex from remote locations. The router can also upgrade its configuration and firmware from the operator's central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and can create multiple configurations for the same router and switch from one configuration to another at any time.
Modular SmartFlex can be configured for any application. Standard configuration includes 2 Ethernet ports with 2 independent LANs/IP addresses and also includes 1 USB host port, 1 microSD card holder, 2 SIM card holders for automatic failover to an alternate service provider, 2 binary inputs(I/O), 1 binary output (I/O) and onboard GPS.
An optional built-in Wi-Fi module is also available, with industrial grade operating temperature ranges from -40 to +75 °C. Further optional boards include: 3x ETH (the router can be configured with up to 5 total Ethernet ports and 3 independent LANs/IP addresses) or RS-232/485 (isolation strength up to 2.5kV). The SmartFlex supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions, as well as additional software like SmartWorx HUB and R-SeeNet.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Line
- SmartFlex
- Product Type
- Modem/Wireless Router
- Technical Information
- Wi-Fi Generation
- Wi-Fi 4
- Network Band
- Dual Band
- Processor Type
- Cortex A8
- Processor Speed
- 1 GHz
- Standard Memory
- 512 MB
- Maximum Upload Speed
- 6.25 MB/s
- Wireless Specifications
- Broadband Transmission Technology
- Ethernet
- Cellular
- Wireless LAN Standard
- IEEE 802.11a/b/g/n
- ISM Band
- Yes
- UNII Band
- Yes
- ISM Maximum Frequency
- 2.40 GHz
- UNII Maximum Frequency
- 5 GHz
- Cellular Generation
- 4G
- Cellular Network Supported
- UMTS 850
- UMTS 900
- UMTS 1900
- UMTS 2100
- TD-SCDMA
- TD-SCDMA 1900
- TD-SCDMA 2100
- TD-SCDMA 850
- TD-SCDMA 900
- LTE 850
- LTE 900
- LTE 1700
- LTE 1900
- LTE 2100
- LTE 2600
- LTE 1800
- LTE 2300
- HSPA 850
- HSPA 900
- HSPA 1900
- HSPA 2100
- Cellular Data Connectivity Technology
- LTE Cat 4
- LTE
- HSPA
- HSPA+
- UMTS
- EDGE
- GPRS
- DC-HSPA+
- Encryption Standard
- WEP
- TKIP
- AES
- WPA-PSK
- WPA2-PSK
- DES
- 3DES
- RSA
- MD5
- SHA
- Firewall Type
- NAT
- PAT
- Interfaces/Ports
- Total Number of Network Ports
- 2
- USB
- Yes
- PoE (RJ-45) Port
- Yes
- USB Standard
- USB 2.0
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- VPN Supported
- Yes
- Multi-SIM Supported
- Yes
- Number of SIM Card Supported
- 2
- SIM Size Supported
- Mini
- Storage
- Flash Memory Capacity
- 256 MB
- Storage Media
- MicroSD
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Height
- 2.2"
- Width
- 4.9"
- Depth
- 3.8"
- Weight (Approximate)
- 13.23 oz
- Miscellaneous
- Package Contents
- SmartFlex SR308 Modem/Wireless Router
- DIN Rail Clip
- PS Cable 2-wire, MO 2 Pins, 3m, v3 Routers
- Quick Start Guide
- Certifications & Standards
- RCM (Australia, New Zealand)
- IEC 61000-6-2:2005, IEC 61000-6-3:2006
- EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
- EN 62311:2008
- RCM
