- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- FPM-700
- Product Type
- LED Touchscreen Monitor
Introduction

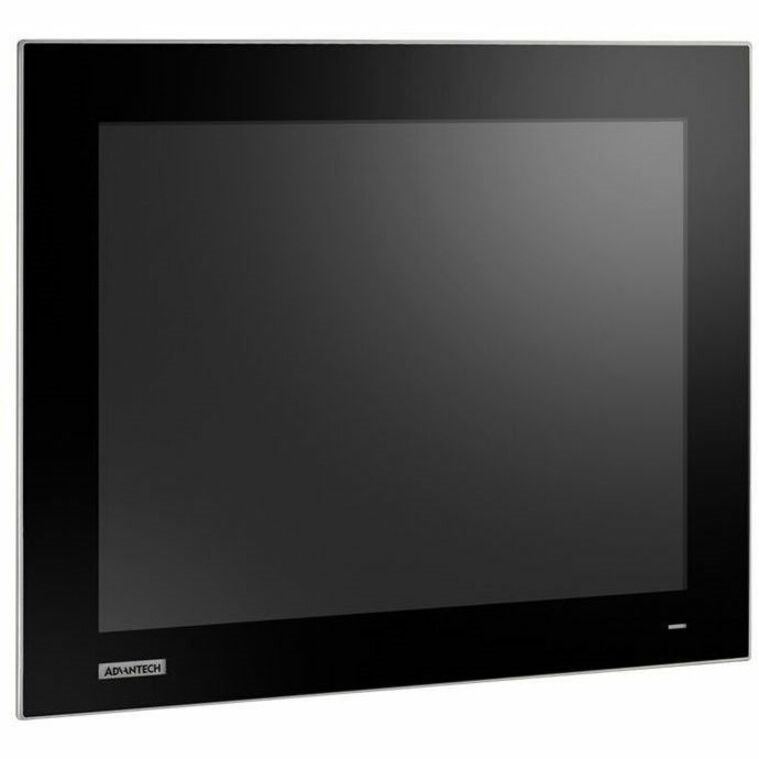

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-700 series comprises 15" , 17" and 19" industrial-grade monitors with sleek, simple lines and a true-flat touchscreen. Equipped with durable 5-wire resistive touchscreen and an IP66-rated front bezel, FPM-700 series is specifically designed for industrial applications. Moreover, FPM-700 series support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to make these monitors ideal for factory and machine automation display applications.
- Technical Information
- Screen Size Class
- 17"
- Viewable Screen Size
- 17"
- Screen Mode
- SXGA
- Panel Technology
- Thin Film Transistor (TFT)
- Horizontal Viewing Angle
- 170°
- Vertical Viewing Angle
- 160°
- Mount Type
- Panel Mount
- Wall Mountable
- Rack-mountable
- Stand Mountable
- Placement
- Tabletop
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Glass Hardness
- 3H
- Ingress Protection (IP) Rating
- IP66
- Video
- Maximum Resolution
- 1280 x 1024
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 350 Nit
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- VGA
- Yes
- DisplayPort
- Yes
- Total Number of HDMI Ports
- 1
- Number of USB Ports
- 2
- Number of DisplayPorts
- 1
- Number of VGA Ports
- 1
- Power Description
- Maximum Power Consumption
- 14.55 W
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 75 x 75
- Height
- 13.5"
- Width
- 16.2"
- Depth
- 2"
- Weight (Approximate)
- 11.90 lb
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 3
