2D Scanning Engine
Drop Protection Long Scanning Range The 2D scanning engine oers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes
Bluetooth, 2.4Ghz and Wired Connection
This barcode scanner oers versatile connectivity with Bluetooth, 2.4GHz wireless, and wired USB options. Seamlessly switch between modes for maximum exibility-connect wirelessly via Bluetooth for mobile use, use the 2.4GHz dongle for stable long-range transmission, or plug in via USB for instant, reliable scanning. Perfect for warehouses, retail, and inventory management.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 5 inches per second, oering fast and accurate.
Drop Protection
With its drop protection and rugged design, the NuScan 3000 can withstand accidental drops of up to 4 feet
Long Scanning Range

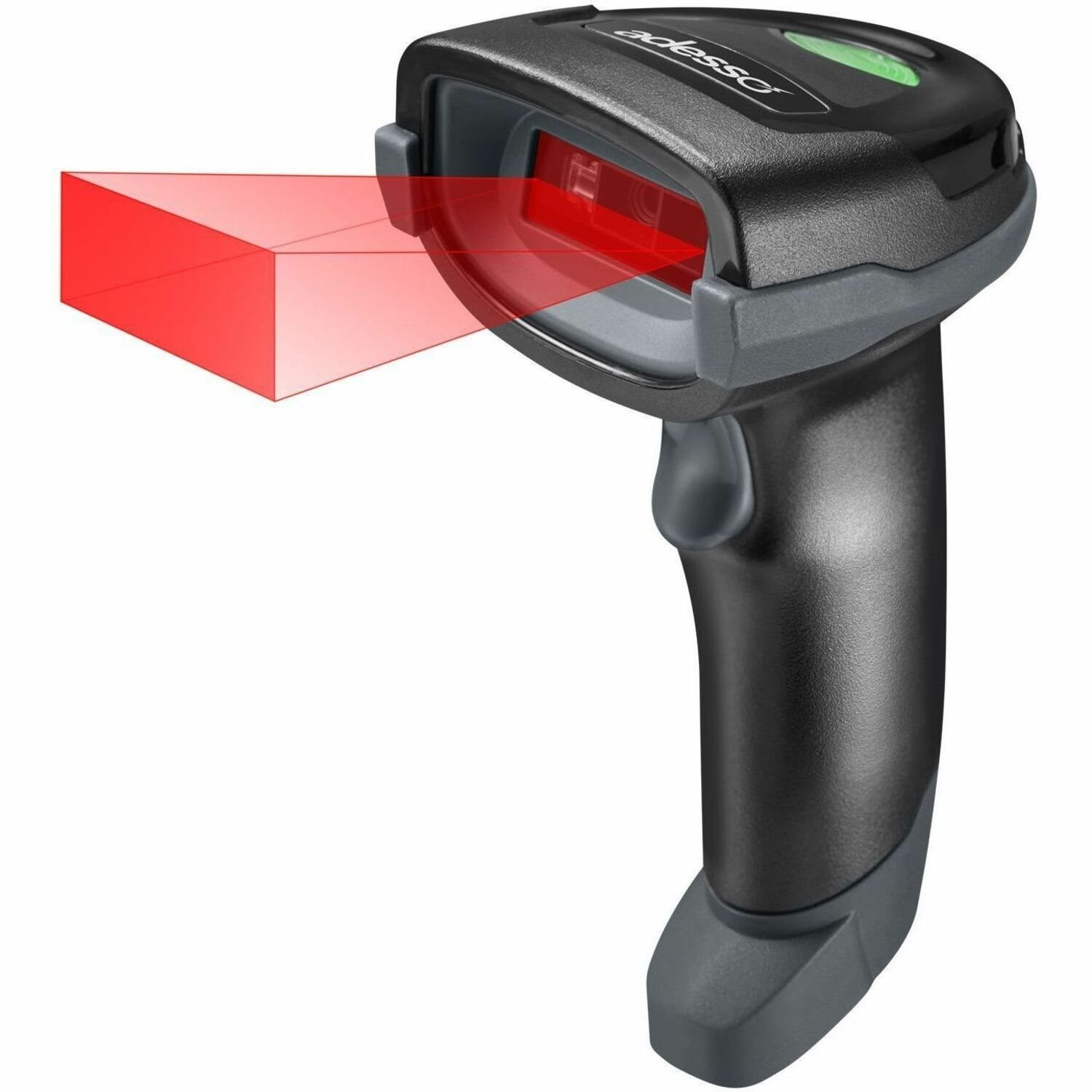

The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan depth.
- General Information
- Manufacturer
- Adesso, Inc
- Manufacturer Website Address
- http://www.adesso.com
- Brand Name
- Adesso
- Product Line
- NuScan
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Scanning Capability
- 2D
- 1D
- Barcode Symbology Supported
1D:
- UPC/EAN/JAN
- UPC/EAN with supplementary
- JAN 8 & Jan 13
- ISBN/ISSN
- Code 39
- ASCII
- Codabar
- Code 128
- Code 93
- Interleaved 2 of 5
- Industrial 2 of 5
- Standard 2 of 5
- GS1 DataBar
- Matrix 2 of 5.
2D:
- QR
- Micro QR
- PDF417
- Datamatrix
- Azetec
- Matrix
- Image Sensor Type
- CMOS
- Scanner Range
- Long Range
- Features
- Beep
- Reading Angle (Pitch)
- 60°
- Reading Angle (Roll)
- 360°
- Motion Tolerance
- 5 in/s
- Maximum Ambient Light
- 100000 lux
- Drop Specification
With its drop protection and rugged design, the NuScan 3000 can withstand accidental drops of up to 4 feet.
- Minimum Print Contrast
- 20%
- Minimum Element Resolution (Code 39)
- 4.1 mil
- Minimum Element Resolution (DataMatrix)
- 15 mil
- Image Sensor Resolution
- 640 x 480
- Illumination Type
- LED
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Battery Information
- Battery Chemistry
- Lithium Polymer (Li-Polymer)
- Battery Capacity
- 2000 mAh
- Maximum Battery Run Time
- 14 Hour
- Environmental Conditions
- Operating Temperature
- 14°F (-10°C) to 122°F (50°C)
- Storage Temperature
- -40°F (-40°C) to 140°F (60°C)
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Rugged
- Yes
- Durability
- Drop Resistant
- Shock Resistant
- Height
- 1"
- Width
- 1.9"
- Length
- 4.2"
- Weight (Approximate)
- 2.96 oz
- Miscellaneous
- Package Contents
- Adesso NuScan 3000
- Charging Cradle
- 2.4Ghz Receiver
- Quick Start User Guide
- Ingress Protection (IP) Rating
- IP42
- Application/Usage
- Warehouse
- Inventory
- Retail
- Platform Supported
- Windows
- Mac
- Android
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
